Satco Products Inc.

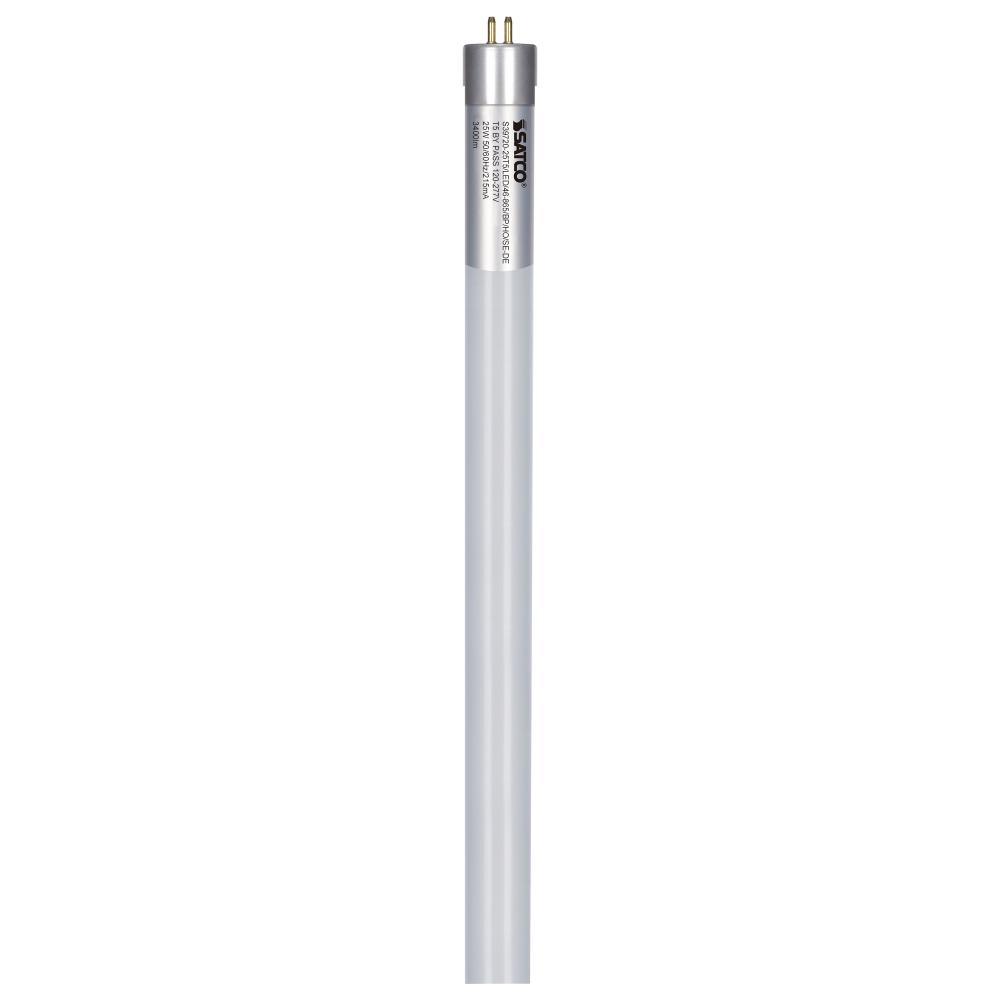

25 Watt T5 LED; Miniature bi-pin base; 6500K; 50000 Average rated hours; 3400 Lumens; 120-277 Volt; (S39720)
$17.90
Call For Price
Enlarge Image
Description:
25 Watt T5 LED; Miniature bi-pin base; 6500K; 50000 Average rated hours; 3400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring
Availability:
  • Manufacturer has 1029 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 0.83"
Additional Details:
right arrow Finish Family: Frost
right arrow Category: LED
right arrow Sub-Category: LED T5
right arrow Volts: 120V-277V
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 6500K
right arrow Bulb Shape: T5
right arrow Diameter: 0.83
right arrow EA Length: 46
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 46
right arrow Lumens: 3400L
right arrow Shap Carton Width: 1
right arrow Ship Carton Height: 1
right arrow Ship Weight: 0.2
right arrow Warranty: 5 Year Limited - T5 LED Bulbs - Ballast Bypass
right arrow Weight: 0.2
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 240
right arrow Bulb ANSI Base: G5
right arrow Bulb Base: Miniature Bi Pin
right arrow Bulb Finish: Frost
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.0266
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Daylight
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: PILKXR6N
right arrow DLC Primary Use: Internal Driver/Line Voltage (UL Type B) Lamps
right arrow Efficacy: 136.00 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: MOL: 46.00 inches, MOD: 0.83 inches
right arrow Feature 2: Superior 83 CRI light quality, 3400 lumens and a 6500K with a 240 beam spread
right arrow Feature 3: Rated for enclosed fixtures
right arrow Feature 4: Damp rated
right arrow Feature 5: 25 watt LED replaces 54 watt fluorescent
right arrow Feature 6: Frosted lens, made of aluminum with silver
right arrow Feature 7: DLC Certified and qualifies for rebates where available
right arrow Feature 8: 5 year limited warranty
right arrow Flourescent Equivalent: 54W
right arrow Has Emergency Battery: No
right arrow Housing Color: Silver
right arrow Incandescent Equivalent: 100W
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow IOT Enabled: No
right arrow IP Rating: IP20
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp End Type: Single Ended;Double Ended
right arrow Lamp Filament: LED
right arrow Lens Finish: Frost
right arrow Lens Material: Glass
right arrow Location Rating: Damp
right arrow Long Description: SATCO NUVO's S39720 25 watt T5 LED 46 inch Type B ballast bypass aluminum replacement lamp offers single or double ended wiring option, superior 83 CRI light quality and 3400 lumens for commercial lighting. The frosted silver bulb features a miniature
right arrow Material: Aluminum
right arrow Nominal Length: 48
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 25
right arrow Pack Type: Sleeve
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 16
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's S39720 25 watt T5 LED 46 inch Type B ballast bypass aluminum replacement lamp offers single or double ended wiring option, superior 83 CRI light quality and 3400 lumens for commercial lighting. The frosted silver bulb features a miniature
right arrow SDS class: LED_Lamp
right arrow Shatter Proof Text: PET Coated
right arrow Short Description: 25T5/LED/46-865/BP/HO/SE-DE
right arrow Style: Utility
right arrow Surge Protection: Built-in-surge protection - 0.7KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 20%
right arrow Tube Guard Use: No
right arrow Wattage Selectable: No
right arrow Watts: 25W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Style: Traditional
right arrow Standard Lumens: 3300+
right arrow Standard Kelvin: 6001-6500
right arrow Standard Wattage: 25w
Vendor Item #:
S39720
